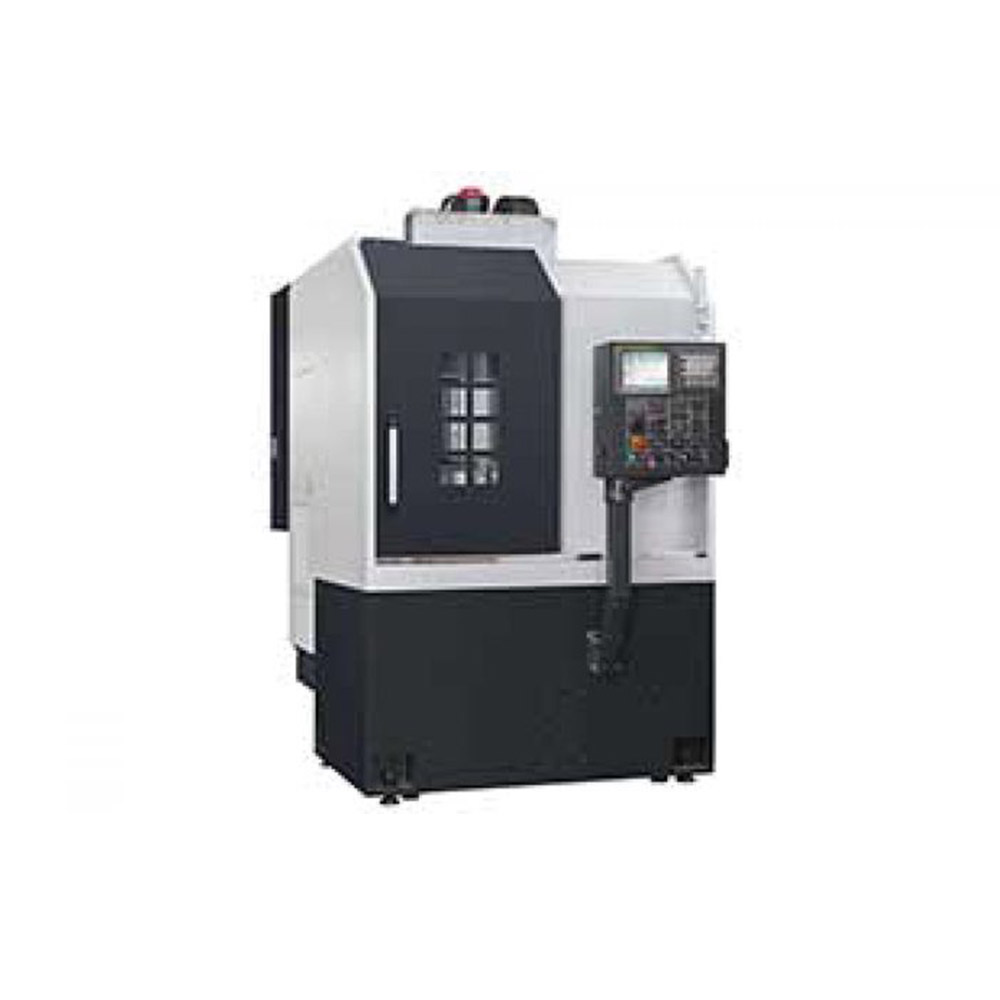

VTL-800M
| Feature | Value |
| Max. Dial Diameter (mm) | 900 |
| Max. Turning Diameter (mm) | 800 |
| Max. Turning Length (mm) | 760 |
| Max. Workpiece Weight(kg) | 1300 |
| X Axis Travel (mm) | 410+20 |
| Z Axis Travel (mm) | 760 |
| Spindle Speed (rpm) | 2000 |
| Mirror Size (mm) | 457(18'') |
| Spindle End | A2-11 |
| Number of Team Stations (pieces) | 12 |
| Square Tool Size (mm) | 25 BMT65 |
| Round Tool Size (mm) | 50 BMT75 |
| X/Z Axis No-load Speeds (m/min) | 20/20 |
| X/Z Axis Motor (Kw(hp) | 4/7(5.4/9.4) |
| Machine Size (LxWxH) | 3456x2430x3804 |
| Machine Weight (kg) | 13700 |
